Wednesday, May 23, 2012

Outlier analysis: Chebyschev criteria vs approach based on Mutual Information

As often happens, I usually do many thing in the same time, so during a break while I was working for a new post on applications of mutual information in data mining, I read the interesting paper suggested by Sandro Saitta on his blog (dataminingblog)  related to the outlier detection.
...Usually such behavior is not proficient to obtain good results, but this time I think that the change of prospective has been positive!


Chebyshev Theorem
In many real scenarios (under certain conditions) the Chebyshev Theorem provides a powerful algorithm to detect outliers.
The method is really easy to implement and it is based on the distance of Zeta-score values from k standard deviation.
...Surfing on internet you can find several explanations and theoretical explanation of this pillar of the Descriptive Statistic, so I don't want increase the Universe Entropy explaining once again something already available and better explained everywhere :)


Approach based on Mutual Information
Before to explain my approach I have to say that I have not had time to check in literature if this method has been already implemented (please drop a comment if someone find out a reference! ... I don't want take improperly credits).
The aim of the method is to remove iteratively the sorted Z-Scores till the mutual information between the Z-Scores and the candidates outlier I(Z|outlier) increases.
At each step the candidate outlier is the Z-score having the highest absolute value.

Basically, respect the Chebyschev method, there is no pre-fixed threshold.

Experiments
I compared the two methods through canonical distribution, and at a glance it seems that results are quite good.
Test on Normal Distribution
As you can see in the above experiment the Mutual information criteria seems more performant in the outlier detection.
Test on Normal Distribution having higher variance

The following experiments have been done with Gamma Distribution and Negative Exponential
Results on Gamma seem comparable.


Experiment done using Negative Exponential distribution
...In the next days I'm going to test the procedure on data having multimodal distribution.
Stay Tuned
Cristian

Saturday, May 5, 2012

Uncertainty coefficients for Features Reduction - comparison with LDA technique

We have already discussed about feature selection and features reduction, and all the techniques we explored were strictly related and applicable only in the text mining domain.
I would to show you one method very powerful, easy to implement and extremely general, because it is not related to the nature of the problem.
The method is known as coefficients of constraint (Coombs, Dawes and Tversky 1970) or uncertainty coefficient (Press & Flannery 1988) and it is based on the Mutual Information concept.


Mutual Information
As you know, the Mutual Information between two random variables X and Y I(X,Y) measures the uncertainty of X knowing Y, and it says how much the uncertainty (entropy) of X is reduced by Y.
This is more clear looking at the below formula:
I(X,Y)= H(X)-H(X|Y)
Where H is the Entropy functional.
As usual, I don't want enter in theoretical discussions, but I heartily recommend a deep read of the book Elements of Information Theory: In my opinion it's the best book in that field.

Let's now rethink the mutual information as a measure of "how much helpful is the feature X to classify documents having  label L":
I(L,X) = H(L)-H(L|X)
So, for each label and each features we can calculate the features ranking!
Of course you can consider the average of I(L_i,X) for each label L_i, or also more complex function over that. BTW you have to assign higher rank to the feature Xj that maximize all I(L_i,Xj).

Uncertainty coefficient
Consider a set of people's data labelled with two different labels, let's say blue and red, and let's assume that for this people we have a bunch of variables to describe them.
Moreover, let's assume that one of the variables is the social security number (SSN) or whatever univocal ID for each person.
Let me do some considerations:
  1. If I use the SSN to discriminate the people belonging to the red set from the people belonging to blue set, I can achieve 100% of accuracy because the classifier will not find any overlapping between different people.
  2. Using the SSN as predictor in a new data set never seen before by the classifier, the results will be catastrophic!
  3. The entropy of such variable is extremely high, because it is almost a uniform distributed variable!
The key point is: the SSN variable could have a great  value but it is dramatically useless to classification job.
To consider this fact in the "mutual information ranking", we can divide it by the entropy of the feature.
So features as SSN will receive lower rank even if it has an high I value.
This normalization is called uncertainty coefficient.

Comparative Experiment
Do you have enough about the Theory? I know that ... I did all my best to simplify it (maybe to much...).
I did some tests on the same data set used in this paper by Berkley University:
In this test the authors did a boolean experiment over REUTERS data set (actually it is very easy test) and they compared the accuracy obtained using all the words in the data set as features and the features extracted through a Latent Dirichlet Allocation method.

The data set contains 8000 docs and 15818 words. In the paper they claimed that they reduced the feature space by 99.6% and they used the entire data set to "extract" the features.
Under this condition they tested using no more than 20% of the data set as training set.

In the comparative test I focused on the second experiment mentioned: GRAIN vs NOT GRAIN.
Here you are the process I followed:
  1. I choose as training set 20% of the docs.
  2. from the above training set I extracted (after stemming and filtering process) all the words and I used them to build the boolean vectors.
  3. I ranked the words through the uncertainty coefficient.
  4. I extracted the first 60 features: that is only 0.38% of the original feature space
  5. I trained an SVM with a gaussian kernel and very high value of C
  6. I tested over the remaining 80% of the data set.
Before the results, let me show you some graph about the feature ranking.
Entropy of the first 3000 features.
The above graph shows the entropy of the first 3000 features sorted by TF-DF score.
As you can notice, the features having low score have low entropy: it happens because these features are present in really few documents so the distribution follows a Bernulli's distribution having "p" almost equal to 0: basically the uncertainty of the variable is very small.


Here you are the final ranking of the first 2500 features.
Uncertainty coefficient for all features.

Results

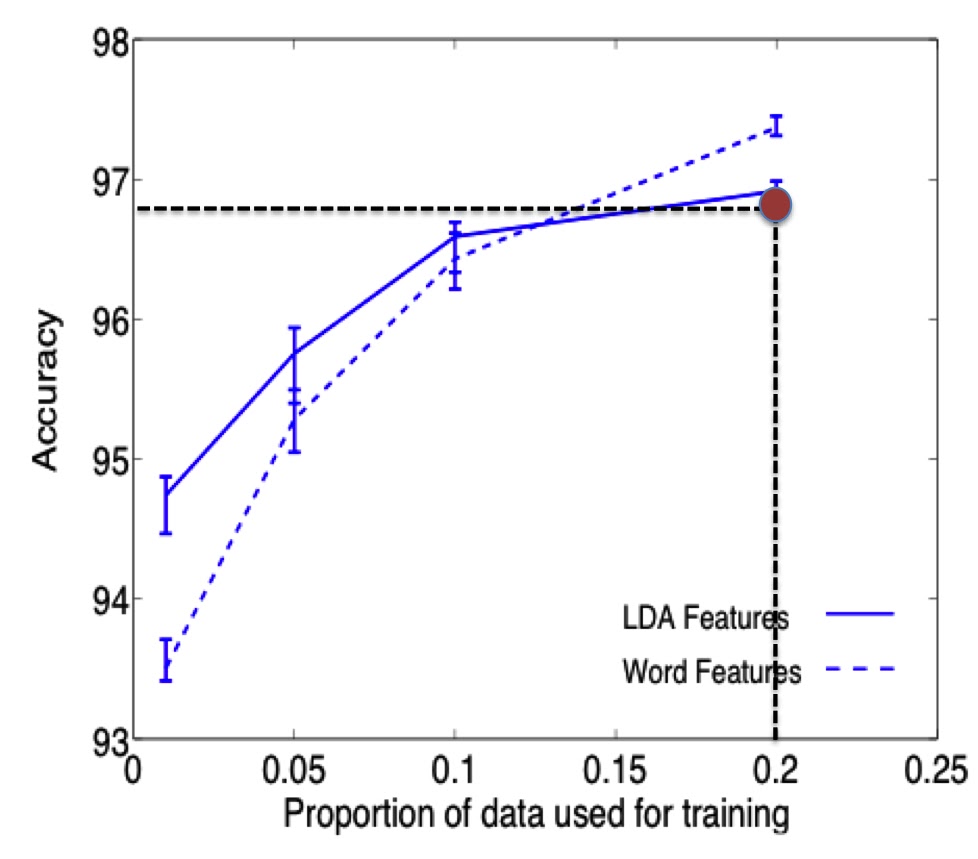

The overall accuracy measured over the test set is equal to 96.89% and it has been depicted in the below graph (I used their original graph [figure 10.b] as base) as a red circle:
Accuracy comparison: the red circle represents the accuracy obtained training an SVM with the features extracted through the Uncertainty Coefficients.
I would like to remark that the features has been extracted using just the training set (20% of the data set),  while the experiments done by the authors of the mentioned paper used the entire data set.
Better results can be easily achieved using the conditioned entropies in an iterative algorithm where the mutual information is measured respect a local set of features (adding the features that maximize the M.I. of the current set of features).

Our  experiment shows clearly that the "Uncertainty Coefficients" criteria is a really good approach!
Soon, we will see how to use this criteria to build a clustering algorithm.
As usual: stay tuned.
cristian
