### Image comparison: SURF algorithm

In the former post I showed a naif approach that can be easily implemented and that works quite well under the condition that the image is not subjected to distortions.
I decided to deepen a bit the topic just for the sake of the curiosity ( curiosity and imagination are the skills that I most appreciate at work!).

SURF stands for "Speeded Up Robust Features" and it has been published by Herbert Bay, Andreas Ess, Tinne Tuytelaars, Luc Van Gool in 2008. The original paper is available here.

I strongly recommend to read the paper: it's self contained and it's very clear to be read also by neophyte  as I.
As usual I go straight to the experiments and to discuss the results.

Experiment
I considered again the same data set of the last post, and I tried to compare all the possible combinations  of pairs of images  to check the accuracy of the algorithm.

The first step of the algorithm is to determine the key features of an image.
 key features detection
Once the features have been detected it's possible to use them for the comparison through euclidean measures or similar.

In the below image I plotted the common points and their position between two images:
 Common points found between two images. In yellow I depicted them and their position.
If you zoom a bit the image you will notice that the common points found are thousands. To find them the algorithm took around four minutes.
In a productive environment this amount of time could be not acceptable.
To improve the situation and reduce the computational time, I processed the image with binarization filters; after this preprocessing the time has been reduced from 4 minutes to 25 seconds.

Results

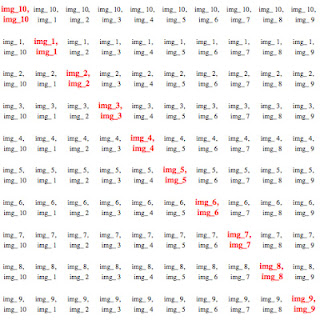

In the below matrix I listed all the comparison done to check the accuracy.
The correct pairs lay on the principal diagonal of the matrix.
 In red have been listed the correct pairs
To show graphically the results I plotted over the matrix the number of common points found for each pair. The colors chosen highlight that number.

Conclusions
As you can see for all the pairs on the principal diagonal the algorithm detected the highest number of common points.

In the next post I will show how to use this algorithm to identify logos in a document.
Stay tuned
Cristian
